Creating a 3D Array in Autocad
In AutoCAD there is a 3D array of menus, we will learn a simple application of the 3D array
By using 3D ARRAY menu in AutoCAD, We Can create an array of rectangular or polar array of objects in 3D.
In Addition to Establishing the number of columns (X direction) and rows (Y direction),
We also determine the number of levels (Z direction).
limit the size of Arrays
If We set a number of very large array of rows and columns,
AutoCAD can be time consuming to make copies.
We can also create 2D images with the help of the 3D array for drawing 2d We seem like 3D
To create a 3D polar arrays of objects

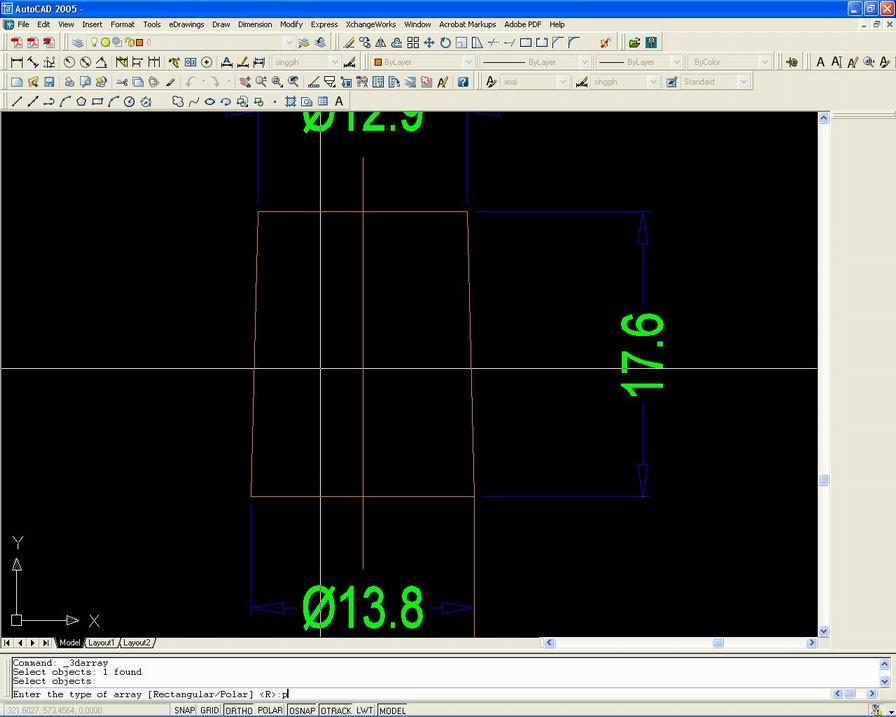

1. From the Modify menu, choose 3D Operation 3D Array.
2. Select the object to an array (1).
3. Determine Polar.
4. Enter the number of items to the array.
5. That Determine the angle the object you want created
6. Press ENTER to rotate the object as structured.
7. Determine the starting point and end point of the axis of the object to be rotated
