Proporties units and drawing window size correct

1 comment

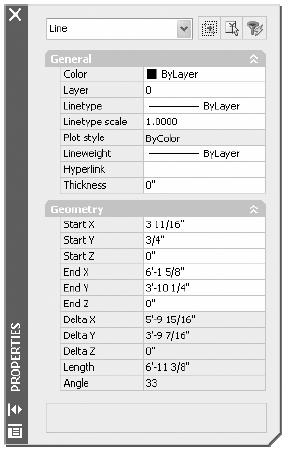

Are your units and drawing window size correct? If the properties on your computer are displaying the line’s data in decimals instead of feet and inches (as shown in Figure 2-1.8), that means you did not start using the correct template file. Similarly, if you’re drawing window is not approx. 5’-10” x 3’-9” then you either started with the wrong template or your template file has been altered; if the later is the case, which is less likely, zoom in (or out) to correct the screen display. At this point you should close the drawing and start this lesson over. Notice the information displayed for the selected line: o The X, Y and Z coordinates are listed, relative to the drawings origin (0,0,0), for both the start and end points. o The line’s Length and Angle are listed. o Delta X and Delta Y; the Delta X is the horizontal distance between the start point and the end point. The white areas are editable and the grey areas are not. You cannot edit the length, for example, because AutoCAD needs more info, like what direction to make the line longer.
Fr.
Daniel John Stine
SDC
Schroff Development Corporation
